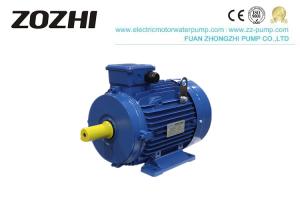

IEC Standard 3 Phase Induction Motor Die Casting Aluminum Housing 2.2KW 5.5KW 7.5KW

Brand Name : ZOZHI

Model Number : MS802-4

Certification : ISO

Place of Origin : China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden case.

Product Name : 3 Phase Induction Motor

Application : woodworking machinery

Output : 0.75KW/1HP

Pole : 4

Efficiency : IE1,IE2,IE3

Performance : High Reliability

Capacitor Type : Capacitor Running

Phase : THREE Phase

Contact Now

IEC Standard Die-casting Aluminum Housing 2.2KW 5.5KW 7.5KW 3Phase Induction Motor

3 Phase Induction Motor

Components:

1. Housing: Die-casting Aluminum

2. Stator & Rotor Core: Silicon Steel Sheets

3. Bearings: C&U, NSK,

3 phase asynchronous motors(induction motors) adopt IEC standards, casting iron housing. Dustproof and waterproof, low noise, low vibration, energy saving, long service life.

Voltage: 220/380V

Frequency: 50HZ /60HZ

Ingress Protection: IP54, IP55, IP56

Power:0.09-11kw ( 0.12HP-15HP)

Poles: 2P, 4P, 6P, 8P

Output Speed: 3000rpm, 1500rpm, 1000rpm, 750rpm

Frame: H56- H180

Insulation Level: F

Duty: Continuous duty (s1)

Cooling: IC411

Brake: Optional Brakes

Application:

general machinery, boat, electric car vehicle, industry machine, packing machine, more relaxed, printer, oven, exhaust fan, pumps, electric vehicle, CNC




IEC Standard 3 Phase Induction Motor Die Casting Aluminum Housing 2.2KW 5.5KW 7.5KW

3 Phase Induction Motor


IEC Standard 3 Phase Induction Motor Die Casting Aluminum Housing 2.2KW 5.5KW 7.5KW

The revised standard includes the following line-motors
Number of Poles 2,4,6,8
Power range 0.75-11KW
Level

IE1-Standard Efficiency

IE2-High Efficiency

IE3-Premium Efficiency
Voltage 230/400V/60Hz
Degree of protection all
Operating mode

S1(permanent operation with constant load); motors that are

designed for different operating modes but can still be operated

permanently with rated output.
Degree of temperature -20. C- + 60.C
Altitude Up to 4000m above sea level
Geared motors yes
Validity Standard IEC

IE3 Premium Efficiency

Model Power (V) (A)

Spee

d r/min

 Eff. (%) P.F. Tstart/Tn Ist/In
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0

IE2 High Efficiency

Model Power (V) (A) (r/min) Eff. (%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79.0 80.0 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84.0 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87.0 0.860 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.860 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89.0 89.8 89.4 0.860 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90.0 90.5 90.3 0.860 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91.0 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.720 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87.0 86.6 0.790 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89.0 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90.0 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.650 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77.0 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81.0 83.4 83.3 0.720 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86.0 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2

IE1 Standard Efficiency

Model Power
(V)
(A)		 P.F. Eff.(%) Speed
(r/min)		 Tstart/Tn Tmax/Tn Ist/In(A)
kW HP
MS561-2 0.09 0.12 220/380 0.57/0.33 0.68 62 2800 2.3 2.4 6
MS562-2 0.12 0.16 220/380 0.67/0.38 0.71 67 2800 2.3 2.4 6
MS631-2 0.18 0.24 220/380 0.91/0.53 0.75 69 2800 2.2 2.4 6
MS632-2 0.25 0.33 220/380 1.17/0.68 0.78 72 2800 2.2 2.4 6
MS711-2 0.37 0.5 220/380 1.65/0.95 0.80 73.5 2800 2.2 2.4 6
MS712-2 0.55 0.75 220/380 2.33/1.35 0.82 75.5 2800 2.2 2.4 6
MS801-2 0.75 1 220/380 3.03/1.75 0.85 76.5 2800 2.2 2.4 6
MS802-2 1.1 1.5 220/380 4.42/2.55 0.85 77 2800 2.2 2.4 6
MS90S-2 1.5 2 220/380 6.01/3.84 0.85 77 2800 2.2 2.4 6
MS90L-2 2.2 3 220/380 8.61/4.98 0.86 78 2800 2.2 2.4 6
MS100L-2 3 4 220/380 11.1/6.4 0.87 82 2870 2.2 2.3 7
MS112M-2 4 5.5 380/660 8.2/4.7 0.87 85.5 2890 2.2 2.3 7
MS132S1-2 5.5 7.5 380/660 11/6.4 0.88 85.5 2900 2.0 2.2 7
MS132S2-2 7.5 10 380/660 15/8.6 0.88 86.2 2900 2.0 2.2 7
MS160M1-2 11 15 380/660 21.3/12.2 0.88 88 2930 2.0 2.2 7
MS160M2-2 15 20 380/660 28.7/16.4 0.89 89 2930 2.0 2.2 7
MS160L-2 18.5 25 380/660 34.6/19.8 0.90 90 2930 2.0 2.2 7
MS180M-2 22 30 380/660 40.9/23.4 0.90 90.5 2930 2.0 2.2 7
MS561-4 0.06 0.08 220/380 0.49/0.28 0.58 56 1400 2.3 2.4 6
MS562-4 0.09 0.12 220/380 0.67/0.39 0.61 58 1400 2.3 2.4 6
MS631-4 0.12 0.16 220/380 0.84/0.48 0.63 60 1400 2.2 2.4 6
MS632-4 0.18 0.24 220/380 1.12/0.65 0.66 64 1400 2.2 2.4 6
MS711-4 0.25 0.33 220/380 1.44/0.83 0.68 67 1400 2.2 2.4 6
MS712-4 0.37 0.5 220/380 0.94/1.12 0.72 69.5 1400 2.2 2.4 6
MS801-4 0.55 0.75 220/380 2.69/1.56 0.73 73.5 1400 2.2 2.4 6
MS802-4 0.75 1 220/380 3.48/2.01 0.75 75.5 1400 2.2 2.4 6
MS90S-4 1.1 1.5 220/380 4.74/2.75 0.78 78 1400 2.2 2.4 6
MS90L-4 1.5 2 220/380 6.31/3.65 0.79 79 1400 2.2 2.3 7
MS100L1-4 2.2 3 220/380 8.6/5.0 0.82 81 1430 2.2 2.3 7
MS100L2-4 3 4 220/380 11.7/6.8 0.81 82.5 1430 2.2 2.3 7
MS112M-4 4 5.5 380/660 8.8/5.1 0.82 84.5 1440 2.2 2.2 7
MS132S-4 5.5 7.5 380/660 12/6.9 0.84 85.5 1440 2.2 2.2 7
MS132M-4 7.5 10 380/660 15/8.6 0.85 87 1440 2.2 2.2 7
MS160M-4 11 15 380/660 22.3/12.7 0.85 88 1460 2.2 2.2 7
MS160L-4 15 20 380/660 30/17.1 0.85 89 1460 2.0 2.2 7
MS180M-4 18.5 25 380/660 36.4/20.8 0.85 90.5 1470 2.2 2.2 7.5
MS180L-4 22 30 380/660 43.1/24.6 0.85 91 1470 2.2 2.2 7.5
MS90S-6 0.75 1 220/380 4.0/2.3 0.70 72.5 910 2.2 2.2 5.5
MS90L-6 1.1 1.5 220/380 5.5/3.2 0.72 73.5 910 2.2 2.2 5.5
MS100L-6 1.5 2 220/380 6.9/4.0 0.74 77.5 940 2.2 2.2 6
MS112M-6 2.2 3 220/380 9.7/5.6 0.74 80.5 940 2.2 2.2 6
MS132S-6 3 4 220/380 12.4/7.2 0.76 83 960 2.2 2.0 6.5
MS132M1-6 4 5.5 380/660 9.4/5.4 0.77 84 960 2.0 2.0 6.5
MS132M2-6 5.5 7.5 380/660 13/7.5 0.78 85.3 960 2.0 2.0 6.5
MS160M-6 7.5 10 380/660 16.5/9.43 0.80 87.5 970 2.0 2.0 6.5
MS160L-6 11 15 380/660 24.1/13.8 0.79 89 970 2.0 2.0 6.5
MS180L-6 15 20 380/660 31.5/18 0.81 86 970 2.0 2.0 7.0
MS132S-8 2.2 3 220/380 10/5.8 0.71 85.5 710 2.0 2.0 5.5
MS132M-8 3 4 220/380 13.3/7.7 0.72 82 710 2.0 2.0 5.5
MS160M1-8 4 5.5 380/660 10.2/5.8 0.73 81 720 2.0 2.0 6.0
MS180M2-8 5.5 7.5 380/660 13.6/7.8 0.74 83 720 2.0 2.0 6.0
MS160L-8 7.5 10 380/660 17.7/10.1 0.75 85.5 720 2.0 2.0 6.0
MS180L-8 11 15 380/660 25.1/14.3 0.76 87.5 730 2.0 2.0 6.5




Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
